Assignment 4

Goals

Learn to create geospatial and treemap visualizations and apply colormaps.

Instructions

There are three parts to the assignment. You may complete the assignment in a single HTML file or use multiple files (e.g. one for CSS, one for HTML, and one for JavaScript). You should use D3 v7 and Observable Plot for this assignment as directed (Part 1 using D3, Parts 2&3 using either or both). All visualization should be done using D3 calls except where instructed otherwise. You may use other libraries, but you must credit them in the HTML file you turn in. Extensive documentation for D3 is available, and Vadim Ogievetsky’s example-based introduction that we went through in class is also a useful reference. The D3 and Observable Plot Map Examples may also help. Finally, the courselet on color in data visualization should help you understand the details of colormapping as implemented with Plot: download, view

Due Date

The assignment is due at 11:59pm on Wednesday, April 2.

Submission

You should submit any files required for this assignment on Blackboard. For Observable, do not publish your notebook; instead, (1) share it with me (@dakoop) and (2) use the “Export -> Download Code” option and turn in that file renamed to a4.tar.gz (or a4.tgz) file to Blackboard. Please do both of these steps as (1) is easier for me to grade, but (2) makes it possible to persist the state of the submission. If you complete the assignment outside of Observable, you may complete the assignment in a single HTML file or use multiple files (e.g. one for HTML and one for CSS). Note that the files should be linked to the main HTML document accordingly in a relative manner (styles.css not C:\My Documents\Jane\NIU\CSCI627\assignment4\styles.css). If you submit multiple files, you may need to zip them in order for Blackboard to accept the submission.

Details

In this assignment, we will examine information about corn and soybean production in Illinois. This data comes from the USDA’s Census of Agriculture through the QuickStats service. Specifically, we are interested in how much of each crop different counties and agricultural districts produce in Illinois. This data has been extracted and is available online. To create maps, we will use data with the outlines of each Illinois county. This file is in a GeoJSON format that D3 and Observable Plot can handle. In addition, the boundaries have been simplified. The goal of the assignment is to understand crop production across Illinois.

0. Info

Like Assignment 1, make sure your assignment contains the following text:

  • Your name
  • Your student id
  • The course title (“Data Visualization (CSCI 627/490)”), and
  • The assignment title (“Assignment 4”)

If you used any additional JavaScript libraries or code references, please append a note to this section indicating their usage to the text above (e.g. “I used the jQuery library to write callback functions.”) Include links to the projects used. You do not need to adhere to any particular style for this text, but I would suggest using headings to separate the sections of the assignment.

1. Illinois Map

Use D3 for this part of the assignment.

1a. Base Map (15 pts)

Create a map that shows the Illinois county boundaries. You will only need the GeoJSON data for this part of the assignment. Remember that you will need a projection for the map. For this assignment, we will use the Illinois East State Plane projection. Noah Veltman has provided a handy list of these in d3.geo format here.

For the map, you will want to use each county as a separate feature. You can access mapData.features to obtain this array. Each feature has a number of properties that can be useful for the next steps. If you wish, you could implement a tooltip using the COUNTY_NAM attribute to show a county’s name (for a data item d, this is stored in d.properties.COUNTY_NAM). You can load the mapData via d3.json.

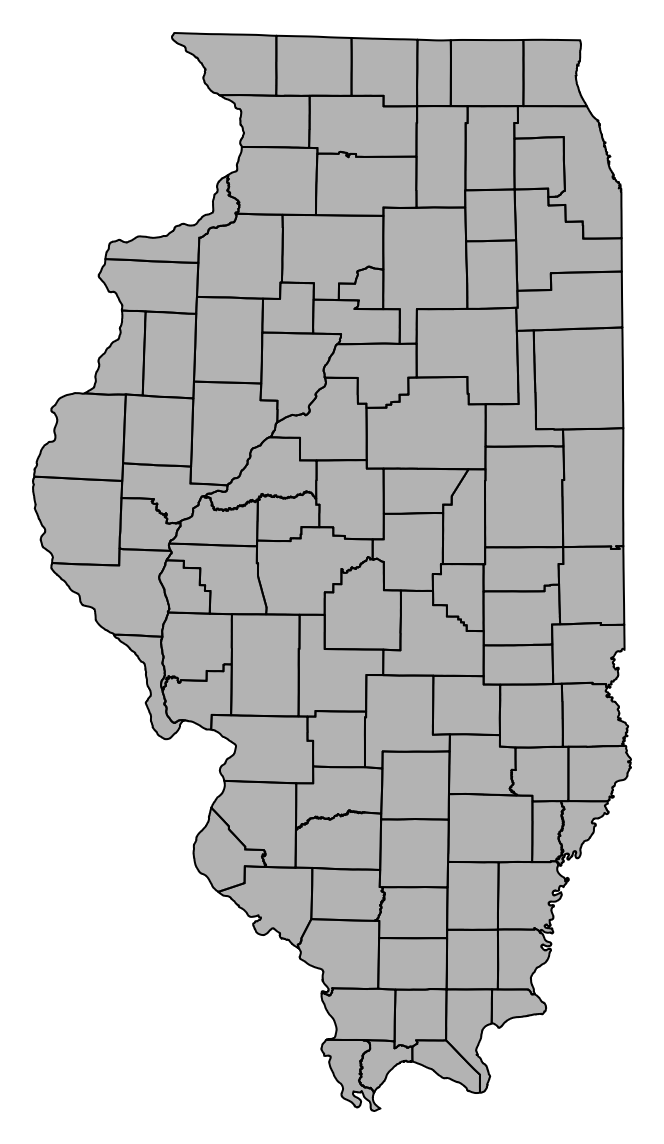

Example Solution for Part 1
Hints
  • Each county is a feature so if mapData is the variable loaded by d3.json, mapData.features is a list of all of the counties.
  • d3.geoPath can have an associated projection is used to translate GeoJSON features into paths on screen.

1b. Agricultural Districts (10 pts)

Create a second Illinois map that colors the counties based on the agricultural district they belong to. The districts are defined by the AgDistrict property in the crop production json. In order to color the counties, we want to look up the district given the county. In the GeoJSON file you used in Part 1a, there is a CO_FIPS property that can be used to match with the CountyANSI value in the crop production json file. Given a GeoJSON feature d, a county’s properties are accessed from the properties object as d.properties. Thus, d.properties.CO_FIPS gives the county’s code. It is probably worth creating a new lookup from the original data in the form of a Map or an Object that looks something like {31: "Northeast", 139: "East Southeast", ...} where the keys are the CountyANSI values, and the values are the AgDistricts. Pick an appropriate colormap for this data. A list of color schemes is here.

Hints
  • Remember the array functions to help build the map between county codes and districts.
  • You will need to exclude the “Other Counties” entry in the County list that stores data from the state that is not assigned to a listed county.

2. Crop Production by County

You may use either D3 or Observable Plot (or both) for this part of the assignment. The projection in Part 1a can be translated to Plot:

{ type: "transverse-mercator", rotate: [88 + 20 / 60, -36 - 40 / 60] }

You will create three visualizations with different colormaps.

a. 2023 Corn Harvested (15 pts)

Using the crop production data in concert with the GeoJSON data, create a new choropleth map that shows the 2023 corn harvest by county. The colormap should accurately convey the amount for each county. Create a legend so a viewer can understand the values.

A sample entry of the crop data looks like

[{"Year":2022,"AgDistrict":"Northeast","County":"Boone","CountyANSI":7,"CornAcresPlanted":68700,"CornAcresHarvested":67400,"CornYield":209.2,"SoybeansAcresHarvested":50400,"SoybeansAcresPlanted":50600,"SoybeansProduction":3135000,"SoybeansYield":62.2},
{"Year":2023,"AgDistrict":"Northeast","County":"Boone","CountyANSI":7,"CornAcresPlanted":70500,"CornAcresHarvested":69700,"CornYield":212.7,"SoybeansAcresHarvested":48600,"SoybeansAcresPlanted":48800,"SoybeansProduction":2897000,"SoybeansYield":59.6},
...]

For this part, you will need to use only the 2023 CornAcresHarvested data. As with Part 1, I would suggest writing code to create a Map so that given a CountyANSI value, you can obtain its data.

What is a problem with this visualization? Think about what acres is measuring…

b. 2023 Corn Yield (15 pts)

Create a second choropleth visualization, but this time, show the yield for corn in 2023. This was calculated as the number of bushels per acre and stored in the CornYield field. This provides a picture of which counties’ corn platings were most productive. Remember to include a legend.

c. 2023 Corn-Soybean Difference (15 pts)

Create a third choropleth visualization, but this time, show the difference in corn acres harvested vs the soybean acres harvested in 2023. You still should be able to compute this directly, given the a map from the county code to the data for that county. You will need to use a different colormap than in part a. Again, add a legend.

Hints
  • Some counties do not have values for the given data. How should you represent them? Think about the colormap you are using. In Plot, consider the unknown option. In D3, check if the value is null before passing it to the scale.
  • The Map constructor can be created from an iterable of key-value pairs.
  • Use Map.get to access a map’s value by key passing the key.
  • Color scales for Observable Plot are documented here
  • In D3, d3.scaleSequential can help with colormapping. Remember to check the type of the values you are displaying to determine a correct colormap.
  • To create a good colormap, think about what the domain of the values is.
  • To create a nice legend in Observable Plot, use the legend option associated with color. Make sure to label the legend appropriately.
  • To create a nice legend in D3, consider using (with proper attribution) M. Bostock’s color ramp approach.

3. [CS 627] Soybean Harvest Treemap (40 points)

Now, we wish to better understand crop production by county and agricultural district. To do so, we can create a treemap using the values for one of the crops (e.g. corn) and the hierarchy ag district -> county. To help users understand the data, we will label the agricultural districts and counties, but we can do this selectively so counties with little production are not labeled. You may use D3 or Observable Plot or both for this part. D3 contains the functions to create the hierarchy and treemap.

To create the hierarchy, we can first group the data by ag district and county using d3.group. Then, we can pass this result to d3.hierarchy to build the tree. Note that maps can be passed directly without transformation. Make sure to specify which attribute to sum and how to sort. We can now pass this hierarchy to the d3.treemap layout function to calculate the rectangles. Use the squarify layout (this is the default).

From the treemap t, you can extract all leaves via t.leaves() to draw the visualization. Use the x0, x1, y0, y1 coordinates to draw each leaf rectangle. The color should reflect the ag district. Add a tooltip that shows the ag district, county, and value, when a county is highlighted. Include the “Other Counties” data as a separate district. Create a treemap for the 2023 SoybeansAcresHarvested.

Hints
  • After creating the hierarchy, you can get a node’s parent via the .parent property. All leaves will be at the same depth so you can extract all nodes for districts via the correct mapping of leaves to parents (or grandparents).
  • A Set will eliminate duplicated nodes (e.g. from districts)
  • Make sure your selectAll statements do not select already created objects! For example, calling svg.selectAll(text) twice on the same svg will bind the already created rectangles on the second call. You can attach a class name (text.district) to the object type to avoid this.
  • Data for a property foo of a leaf d in stored in d.data.foo, but extracting a district/county label is at d.data[0].
  • Labels can be centered at a particular point by using the text-anchor: middle style property.

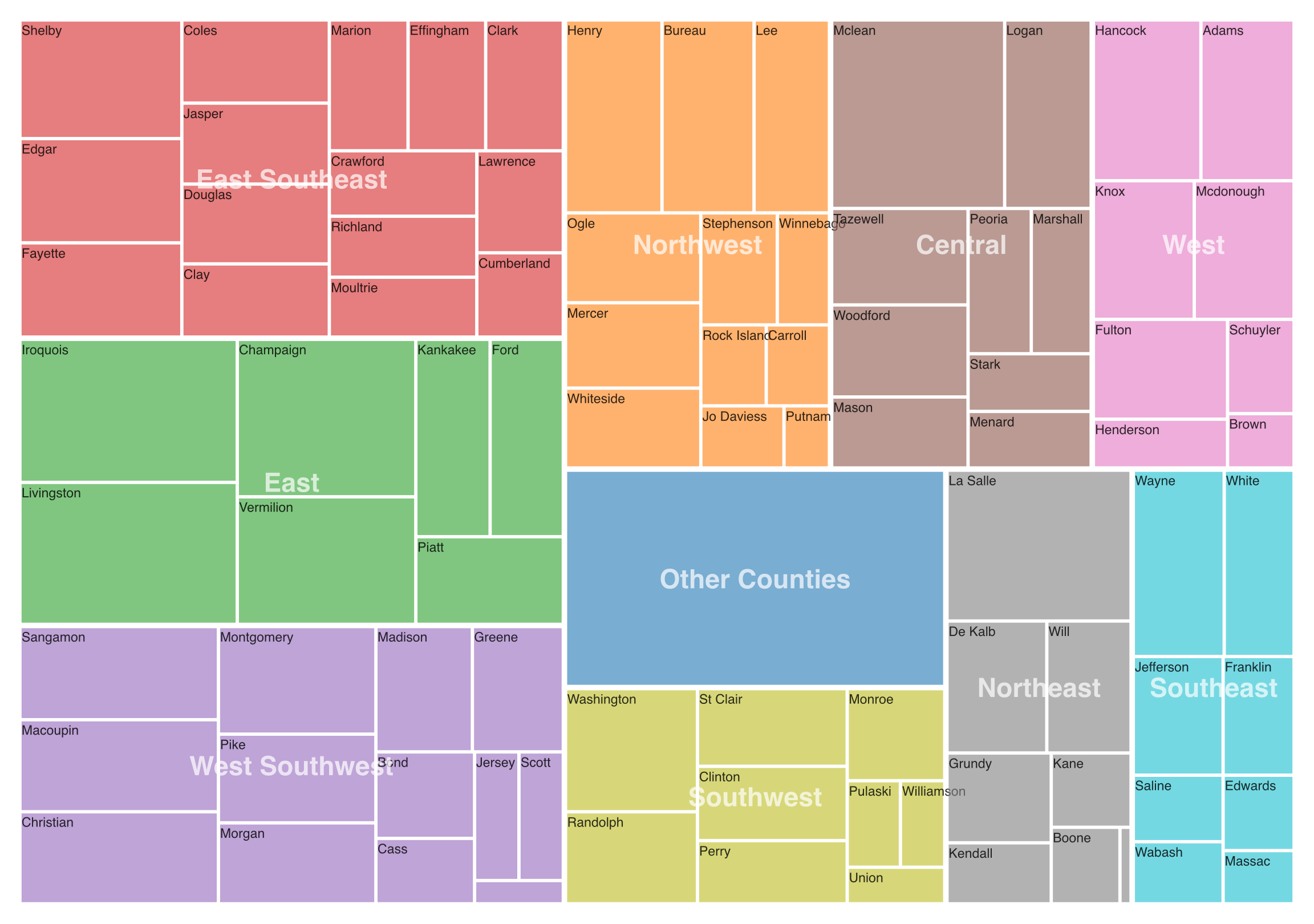

Example Solution for Part 3

Extra Credit

For extra credit, CS 490 students may complete Part 3. In addition, all students may implement a way for users to interactively update which year (or crop) is shown for the visualizations shown in Part 2 or Part 3 (up to 20 points).
