Assignment 1

Goals

Get started (or continue) with Web languages. This assignment will introduce (or reintroduce) you to HyperText Markup Language (HTML), Cascading Style Sheets (CSS), and Scalable Vector Graphics (SVG). While not required, I recommend completing this assignment using Observable. You should have received an invitation to join the NIU Observable Team via your NIU email; please contact me if you did not receive this invitation.

Instructions

There are three parts for this assignment. You may complete the assignment in a single HTML file or use multiple files (e.g. one for CSS and one for HTML). You may not use external libraries for Parts 1 & 2 but may use D3 and Observable Plot for Part 3. The Mozilla Developer Network documentation serves as a great reference for the technologies involved in this assignment. In addition, Scott Murray’s Interactive Data Visualization for the Web is a useful reference (see Chapter 3).

You may choose to work in any environment, but make sure you turn in an output that works in the browser. I recommend using Observable to complete your work, but you may choose to work in another environment. If you work in Observable, please note that your style rules will need to be inlined in the document (not as separate css files). In addition, style rules are global, applied across the entire notebook, so use id attributes in your style rules to limit the extent of the rules. You can use HTML type cells for Parts 1 and 2, and a JavaScript cell for Part 3.

Due Date

The assignment is due at 11:59pm on Wednesday, September 13.

Submission

You should submit any files required for this assignment on Blackboard. For Observable, do not publish your notebook; instead, (1) share it with me (@dakoop) and (2) use the “Export -> Download Code” option and turn in that .tar.gz file to Blackboard. Please do both of these steps as (1) is easier for me to grade, but (2) makes it possible to persist the state of the submission. If you complete the assignment outside of Observable, you may complete the assignment in a single HTML file or use multiple files (e.g. one for HTML and one for CSS). Note that the files should be linked to the main HTML document accordingly in a relative manner (style.css not C:\My Documents\Jane\NIU\CSCI627\assignment1\styles.css). If you submit multiple files, you may need to zip them in order for Blackboard to accept the submission. The filename of the main HTML document should be a1.html.

Details

1. Info (HTML & CSS) (15 pts)

Create an Observable Notebook or HTML web page with the title “Assignment 1”. Then add a section that contains the following items:

  • Your name
  • Your student id
  • The course title (“Data Visualization (CSCI 627/490)”), and
  • The date (“2023-09-13”)

Use the following html to structure this information:

<div id="info">
  <div class="left">
    <!-- Your Name & Z-ID -->
  </div>
  <div class="right">
    <!-- Class Title & Assignment -->
  </div>
</div>

All of the lines you add should be heading elements. The first line (your name) should be larger than the others. Do not add anything except the header tags (with id and class attributes only) and the text in HTML. Two lines should be added the <!-- Your Info --> section and two lines to the <!-- Class Info --> section.

Style the text using CSS so that your name and student id are displayed in the same color (not black or white), and the course title and assignment due date are italicized but not bold. Your name and student id should be on the left side of the page while the course title and assignment due date should be on the right side of the page and the text aligned to the right. Add a rectangle (or rounded rectangle) around the class title and assignment due date. You must do this using CSS; do not use any HTML attributes except id and class!

Hints
  • Think about using either a class attribute or cascading to reduce the number of rules
  • Consider using the Flexible Box Layout to achieve left- and right- alignment.
  • The border and padding properties will be useful for outlining a region.
  • Header items will be bold by default so you will need to override this (see font-weight).

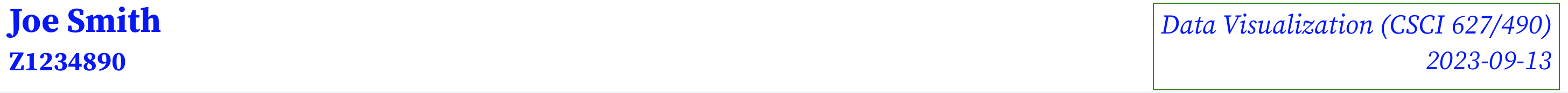

Example Solution for Part 1

2. Camera Phone (SVG & CSS) (20 pts)

In the same web page, write markup that creates an SVG graphic that displays a dual-lens camera phone using SVG. (Do not use an illustration program to generate the SVG!) Your graphic should have the body of the phone with rounded corners, a camera region in the upper left corner, two circles for each lens along with a border for each lens that is darker than the lens, a circular flash to the side of the lenses, a logo in the middle of the phone, and a button on the side of the body opposite of the lens. The flash, lenses, logo, and button must be colored differently than the rest of the phone body. Be creative with the logo (the example shows a boring campground symbol). Finally, write CSS so that when the mouse is hovering over the button, the flash changes to a bright color. Other than that, you may choose to customize your camera as you see fit.

You may only use SVG lines, polylines, rectangles, circles, polygons, or paths. You should draw all content in a single svg element. For example,

<svg id="camera" width="200" height="300">
   <!-- YOUR SVG HERE -->
</svg>
Hints
  • Remember that SVG coordinates start from the top-left part of the element.
  • The order of the SVG elements determines how they appear.
  • You can style SVG elements with CSS in a similar manner to HTML elements.
  • Investigate the SVG fill and stroke attributes to style the camera elements.
  • Examine the documentation to determine how to round the corners of a rectangle.
  • You may choose to use the stroke properties to draw the lens and focus ring at the same time.
  • The :hover psuedo-class will be useful for detecting when the mouse is over the button. Then, use the sibling combinator (~) to target the flash rectangle.
Example Solution

3. Bar Chart (Plot) (15 pts)

Now, we will use Observable Plot to create a bar chart showing which types of words are censored by KidzBop as explored by The Pudding. The dataset is available here. We will be using the KB_group-overview.csv file which calculates the percentage of words belonging to each category that are censored. The goal is to generate a bar chart that shows the categories along the x-axis and the percentage on the y-axis. Use the examples in this notebook along with the KidzBop dataset to create the bar chart.

Observable automatically imports the d3 and Plot libraries so you can use them directly. However, if you are using another tool for this assignment, make sure to include these two libraries. See the documentation about how to include them, specifically about how to use them in vanilla HTML or as a UMD bundle. To load the data, use d3.csv which can load the data from the URL https://raw.githubusercontent.com/the-pudding/data/master/kidz-bop/KB_group-overiew.csv. You should only need two statements to create the bar chart, one to load the data and the other to plot it.

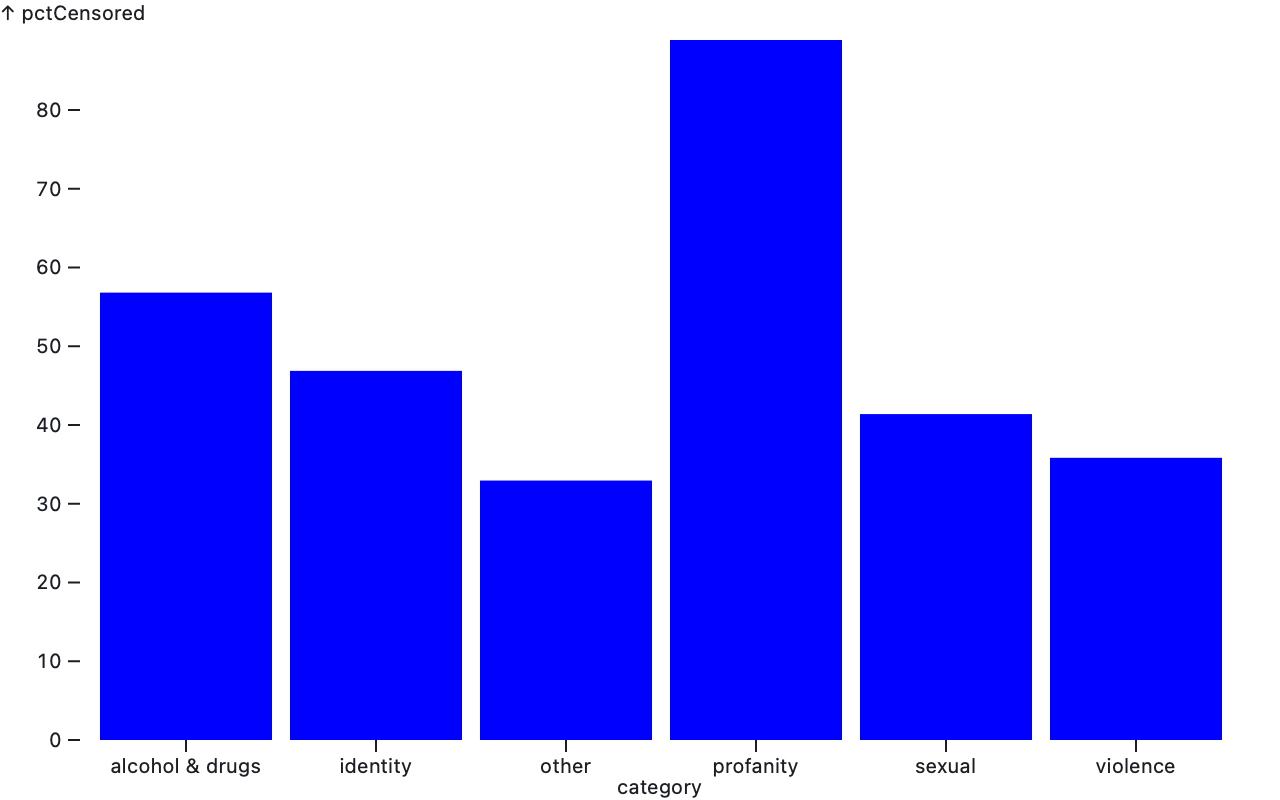

Example Solution for Part 3
