Assignment 8

Goals

The goal of this assignment is to work with the data processing and visualization in Python.

Instructions

You will be doing your work in Python for this assignment. You may choose to work on this assignment on a hosted environment (e.g. tiger) or on your own local installation of Jupyter and Python. You should use Python 3.9 or higher for your work. To use tiger, use the credentials you received. If you work remotely, make sure to download the .py files to turn in. If you choose to work locally, Anaconda is the easiest way to install and manage Python. If you work locally, you may launch Jupyter Lab either from the Navigator application or via the command-line as jupyter lab. You may need to install some packages for this assignment: pandas, matplotlib, and altair. Use the Navigator application or the command line conda install pandas matplotlib altair to install them.

In this assignment, we will be working with data and visualizing it. We will revisit the employment data from Assignment 7, available from the Illinois Department of Employment Security. However, instead of textual summaries, we will create tables and visualizations to gain insight. The data has been pre-processed and is available as a compressed csv file at http://faculty.cs.niu.edu/~dakoop/cs503-2022sp/a8/illinois-employment.csv.gz. Note that you do not need to download or uncompress the data because pandas can load the url directly as a csv file. This data has the following fields:

  • COUNTY: the name of the county (with “COUNTY” appended)
  • FIPS: a numeric code identifying the county
  • YEAR: the year the data was collected
  • LABOR_FORCE: the number of people in the labor force
  • EMPLOYED: the number of people employed
  • UNEMPLOYED_NUMBER: the number of people unemployed
  • RATE: the unemployment rate

Due Date

The assignment is due at 11:59pm on Thursday, May 5.

Submission

You should submit the completed notebook file required for this assignment on Blackboard. The filename of the notebook should be a8.ipynb.

Details

Please make sure to follow instructions to receive full credit. Please document any shortcomings with your code. You may put the code for each part into one or more cells.

0. Name & Z-ID (5 pts)

The first cell of your notebook should be a markdown cell with a line for your name and a line for your Z-ID. If you wish to add other information (the assignment name, a description of the assignment), you may do so after these two lines.

1. Unemployment Rates (25 pts)

First, we will use pandas to compute statistics to find the Illinois counties with high unemployment.

a. Highest Unemployment Rate (2000+) (10 pts)

Load the dataset. Compute the county and year which had the highest unemployment rate since 2000 (including that year). In your notebook, be clear about which county and year had the highest unemployment.

Hints
  • You can use pandas to load the data directly from the url above without downloading it.
  • You can filter the data using bracket syntax or the query method.
  • Statistical functions give the maximum value, but idx versions of those functions give the index label.

b. Lowest Average Unemployment Rate in the 1990s (15 pts)

Next, compute the county that had the lowest average unemployment rate in the 1990s (that is during the years 1990 through 1999, inclusive). To do this, first compute the average unemployment rates (think split-apply-combine), and then find the minimum entry using a similar strategy to part a. Do this all without loops. Again, make sure to state the answer in your notebook.

Hints

2. Employment Status over Time

Next, let’s use visualization to examine trends in Illinois employment over time. We will use matplotlib (via pandas) for this.

a. Line Chart (10 pts)

Using matplotlib directly or via pandas, create a line chart visualization with two lines over the years, one for labor force and one for employed. You will need to use split-apply-combine again, but this time to sum all of the counties for each year. The lines should be different colors, and include a legend that indicates the values being shown by each line.

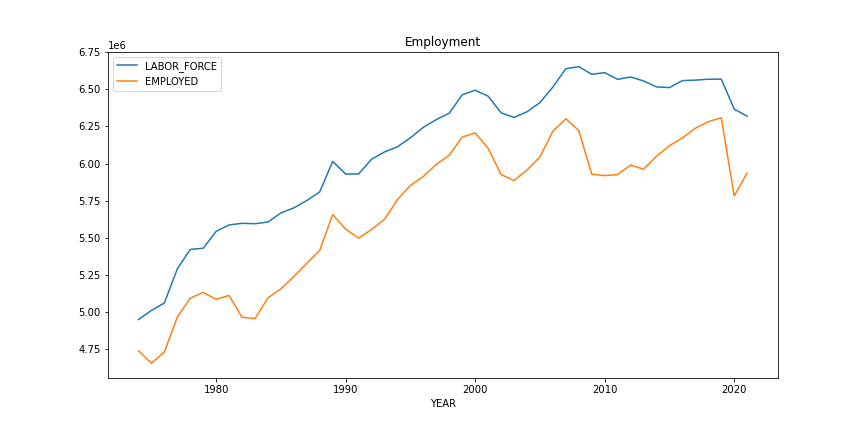

Example Solution for Part 2a

Hints:

  • The title parameter is useful for labeling subplots in pandas
  • Using pandas, you can accomplish this plot in very few lines of code, but it can take some time and experimenting to find the correct set of calls.

b. Grouped Bar Chart (20 pts)

Using matplotlib directly or via pandas’ plotting routines, create a visualization showing the average unemployment rate each decade for the seven counties around DeKalb that we examined in Assignment 7. Those counties are: DEKALB, KANE, BOONE, MCHENRY, WINNEBAGO, OGLE, LEE, and KENDALL. Consider filtering the data to these counties and then computing a new column that stores the decade for each data item. For example, the decade for 1986 is 1980, and for 2011, it is 2010. There is a mathematical way to compute this (again, do not use loops). Then, group and compute the average unemployment rate for each decade per county. By transforming the data, you can obtain a data frame whose rows are decades and whose columns are counties, and that data frame can be used directly by the pandas plot method. Display a legend. For extra credit, sort the data so that the bars are ordered by 2020 unemployment rate.

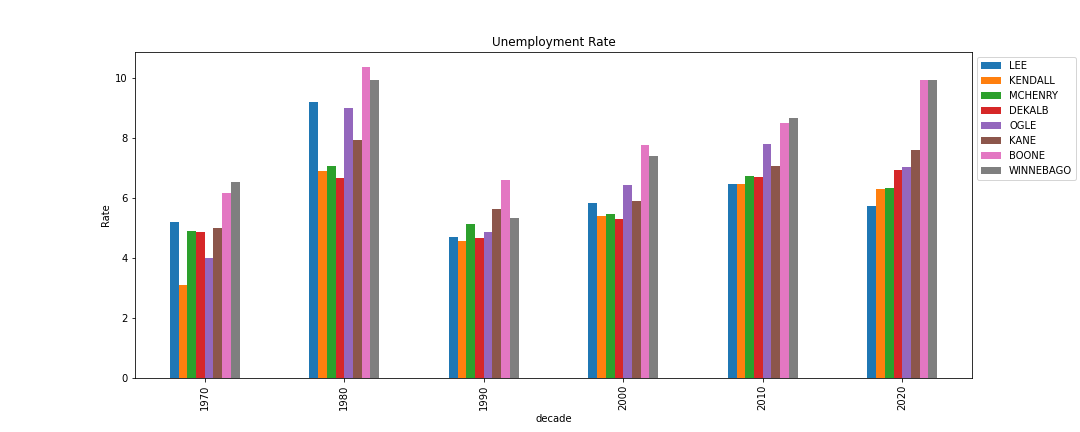

Example Solution for Part 2b
Hints:
  • Consider using the integer division operator.
  • You are grouping by two columns.
  • unstack will be quite useful if you set up your data correctly. Note that unstack can take a parameter that indicates the level of the index.

3. Maps

Given the differences in rates across different counties, we are interested to see if there are any spatial relationships between the county unemployment rates.

a. County Locations (20 pts)

Using altair, create a set of six maps showing the unemployment rate for each county for each of the years from 2016 through 2021. This altair example will be very useful as a reference, but make sure to cite it if you adapt the code. We will use a topojson file that contains the shapes of the counties, available at https://raw.githubusercontent.com/deldersveld/topojson/master/countries/us-states/IL-17-illinois-counties.json. Note that altair can load this file directly from the web, as is done in the example. The field that we will use from the topojson file is cb_2015_illinois_county_20m.

The field we will use to match the counties from the topojson file to our data frame (using LookupData) is the FIPS code. However, in the topojson file, this is specified in the properties.COUNTYFP property as a string with leading zeros (e.g. "003"). Thus, we need to create a column in our data frame from the FIPS column that matches this format. Convert the column to a string and then use pandas string methods to add zeroes to right-justify the data. Filter the data to only include the years from 2016 through 2021, and then create an altair visualization that shows the unemployment rate for each county in a 2x3 layout. Set the width and height properties so the width is narrower than the height. Use the mercator projection. You will need to facet the visualization so that there is a map for each year. See Part b for an example of what this would look like (for Part a, you do not need the red highlight).

Hints
  • The lookup must be done from employment data to topojson because it would only match one year in the reverse.
  • The astype method is useful for transforming the type of a column
  • Consider one of the *just string methods for transforming strings to add the leading zeros.

b. [CSCI 503 Only] Brushing (15 pts)

Add brushing to the set of six maps such that selecting a county when the mouse is over it highlights that same county in all of the other maps. Show this highlight by changing the stroke color and width of the county.

Example Solution for Part 3b
Hints
  • Consult altair’s documentation on selections
  • You need to make sure the selection resolves according to the correct fields
  • Both stroke color and width can be set using an alt.condition.

Extra Credit

  • [15 pts] CSCI 490 students may complete Part 3b.
  • [10 pts] Sort the bars in Part 2b.
  • [10 pts] Use altair to draw the plots in Part 2.
