Assignment 8

Goals

The goal of this assignment is to work with the data processing and visualization in Python.

Instructions

You will be doing your work in Python for this assignment. You may choose to work on this assignment on a hosted environment (e.g. tiger) or on your own local installation of Jupyter and Python. You should use Python 3.8 or higher for your work. To use tiger, use the credentials you received. If you work remotely, make sure to download the .py files to turn in. If you choose to work locally, Anaconda is the easiest way to install and manage Python. If you work locally, you may launch Jupyter Lab either from the Navigator application or via the command-line as jupyter-lab. You may need to install some packages for this assignment: pandas, matplotlib, and altair will be useful. Use the Navigator application or the command line conda install pandas matplotlib altair to install them.

In this assignment, we will be working with data and visualizing it. We will revisit the Utility Energy Registry dataset, but instead of textual summaries, we will create tables and visualizations to gain insight. The data has been pre-processed and is available as a compressed csv file at http://faculty.cs.niu.edu/~dakoop/cs503-2021fa/a8/ny-county-energy.csv.gz. Note that you do not need to download or uncompress the data because pandas can load the url directly as a csv file. This data has the following fields:

  • county_name: the name of the county
  • year: the year the data was collected
  • month: the month the data was collected
  • data_class: electricity or natural_gas
  • data_field_display_name: the field measured (e.g. “Total Consumption (T)”)
  • unit: the unit of measurement (MWh, Therms)
  • value: the value of the measurement
  • number_of_accounts: the number of accounts included in the measurement

Due Date

The assignment is due at 11:59pm on Friday, December 3.

Submission

You should submit the completed notebook file required for this assignment on Blackboard. The filename of the notebook should be a8.ipynb.

Details

Please make sure to follow instructions to receive full credit. Because you will be writing classes and adding to them, you do not need to separate each part of the assignment. Please document any shortcomings with your code. You may put the code for each part into one or more cells.

0. Name & Z-ID (5 pts)

The first cell of your notebook should be a markdown cell with a line for your name and a line for your Z-ID. If you wish to add other information (the assignment name, a description of the assignment), you may do so after these two lines.

1. Maximum Electricity Use (25 pts)

First, we will use pandas to compute statistics to find the New York counties with large electricity usage.

a. Maximum County Total in a Month (10 pts)

Load the dataset and filter out any records whose data field is not Total Consumption (T) as that is the only field we will be using in this assignment. Compute the county and year+month which used the most electricity. For this part, make sure you choose the correct data class. In your notebook, be clear about which county, year, and month had the highest electricity use.

Hints
  • You can use pandas to load the data directly from the url above without downloading it.
  • You can filter the data by two criteria by using the & operator, but remember to use parentheses.
  • Sorting may work better than a statistical function like max.

b. Maximum Per-Account Usage County in 2020 (15 pts)

Next, compute the county that used the most electricity per account in 2020. Again, we use the Total Consumption (T) category, but need to add up both the usage and number of accounts over all twelve months. Then, we need to compute a derived column by dividing the usage by the number of accounts. Do this all without loops. The answer will be a different county than in part a. Again, make sure to state the answer in your notebook.

Hints
  • You will need to use groupby and an aggregation operation to compute the totals.
  • You can assign to a new column like you would assign to a dictionary, or consider using the assign method.

2. Total Electricity and Natural Gas Usage over Time

Next, let’s use visualization to examine trends in electricity and natural gas use over time. We will use matplotlib (via pandas) for this.

a. Bar Charts (15 pts)

Using matplotlib directly or via pandas’ plotting routines, create a visualization with two subplots, one for electricity and one for natural gas. Each plot should show a bar chart of the state’s total use for each year for the corresponding energy class. If you would like pandas to plot this automatically, use the subplots=True option, but you will need your data to look correct first. Specifically, rows should be years and columns should be the type of energy (electricity and natural_gas). Note that you should title the plots according to the type of energy. You do not need to label the axes, but will receive extra credit if you.

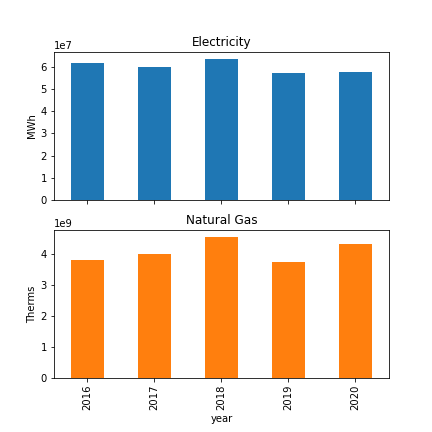

Example Solution for Part 2a
Hints:
  • Here, a groupby and aggregation will again work, but the columns used to group will be different than Part 1b.
  • unstack will be quite useful if you set up your data correctly. Note that unstack can take a parameter that indicates the level of the index
  • Turn off the legend as it is unnecessary. See the documentation for information about this.

b. Line Charts (15 pts)

Again, using matplotlib directly or via pandas, create a visualization with two subplots for energy and natural gas, but this time showing the total per month as line charts. Here, we need to manipulate the data first to get meaningful dates first. You can use pandas’ to_datetime method to accomplish this, but you will need to pass it either a series of string values that look like dates (e.g. ‘2020-1’) or a data frame that has the columns year, month, and day. (If you go the second route, assign will help add a day column.). Then, similar groupby-aggregation steps will work as in Part 2a. You should again title the plots according to the type of energy. You do not need to label the axes, but will receive extra credit if you.

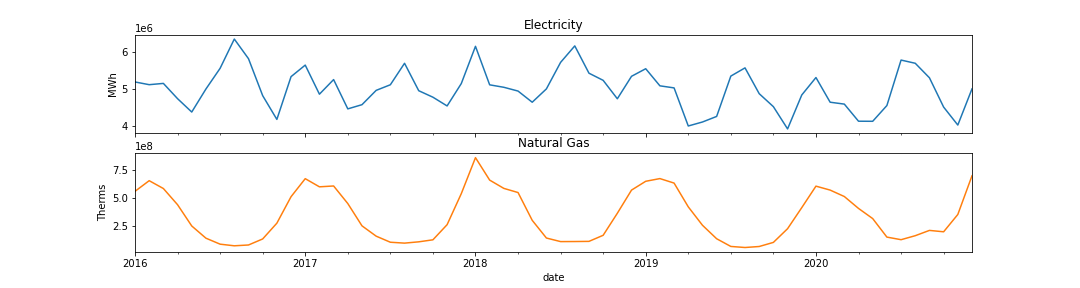

Example Solution for Part 2b

Hints:

  • The title parameter is useful for labeling subplots in pandas
  • Using pandas, you can accomplish this plot in very few lines of code, but it can take some time and experimenting to find the correct set of calls.

3. Counties By Month

Given the interesting patterns between electricity and natural gas use over the seasons, we are interested in seeing how this plays out in different counties by month. We will use altair to explore this.

a. Monthly Scatterplots (15 pts)

Using altair, create a set of twelve scatterplots for 2020 that show electricity versus natural gas use. Use the altair’s facet capabilities to draw a scatterplot for each month. Add a tooltip that shows the county name so that moving the mouse over the point shows its name. Draw the scatterplots in a 4x3 layout.

Hints:
  • facet has an option for the number of columns to use
  • One of altair’s encodings is the tooltip

b. [CSCI 503 Only] Scatterplot Brushing (15 pts)

Now add brushing to the set of twelve scatterplots such that selecting a point corresponding to a particular county in one of the scatterplots highlights that same county in all of the other months. Show this highlight by both changing the color and the size of the point.

Example Solution for Part 3b
Hints
  • Consult altair’s documentation on selections
  • You need to make sure the selection resolves according to the correct fields
  • Both color and size can be set using a condition.

Extra Credit

  • [15 pts] CSCI 490 students may complete Part 3b.
  • [5 pts] Add the x- and y-axis labels for Part 2a.
  • [10 pts] Use altair to draw the plots in Part 2.
