Putting it together - Arithmetic Logic unit
  Unit cloned in parallel for the width of the data bus.

  a. Op-code fed into a decoder.
  b. Decoder selects specific task to be performed.


f0
f1
Function
0
0
Add
0
1
Not A
1
0
A OR B
1
1
A AND B

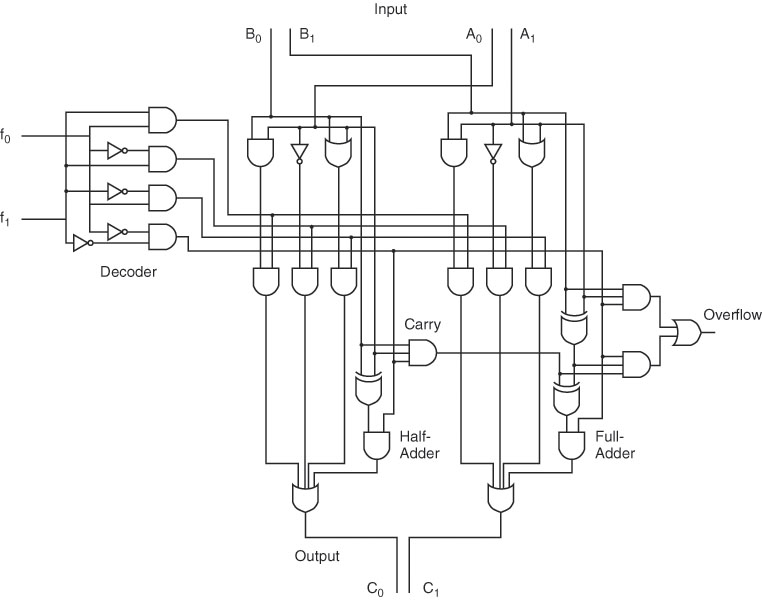

ALU with various computational states active
